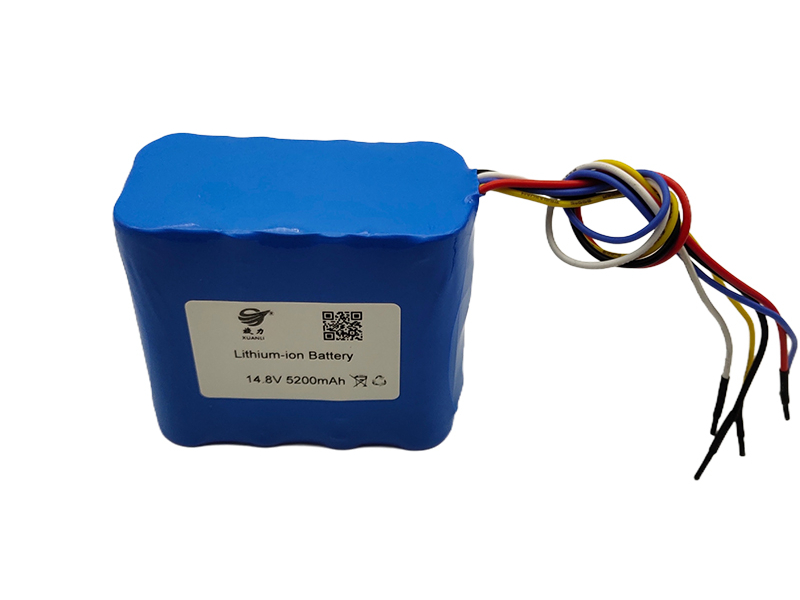

14.8V communication Lithium Battery Product Model: XL 14.8V 5200mAh
14.8V communication lithium battery technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)
·Single battery voltage: 3.7V
·The nominal voltage of the battery pack after assembly: 14.8V
·Single battery capacity: 2600mAh
·Battery combination: 4 strings and 2 parallels
·Battery voltage range after combination: 10~16.8V
·Battery capacity after combination: 5200mAh
· Battery pack power: 76.96Wh
·Battery pack size: 40*70*74mm
·Maximum discharge current: <5.2A
·Instantaneous discharge current: 10~15A
·Maximum charging current: 0.2-0.5C
·Charging and discharging time:> 500 times
·Main chip: TI Seiko BQ series
14.8V communication lithium battery
·Comply with the national standards and requirements of related batteries
·All finished battery products have been calibrated and tested before leaving the factory
