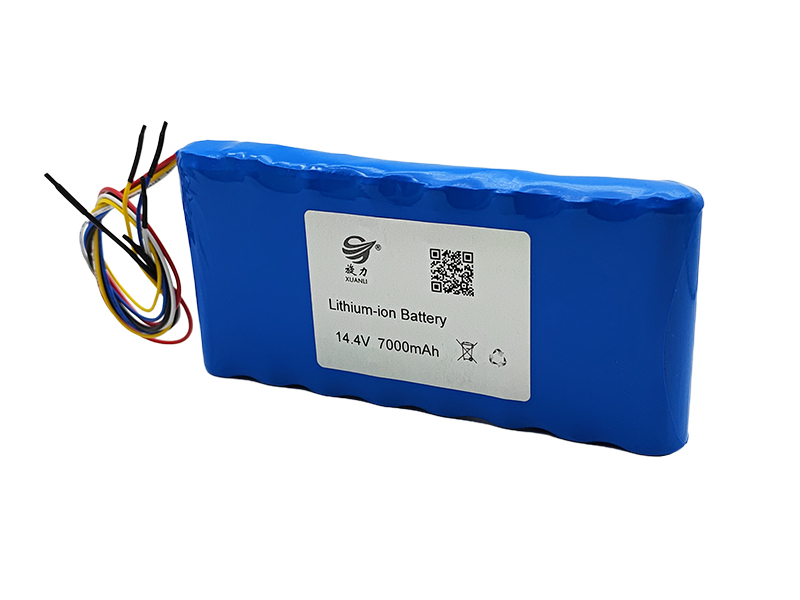

14.4V communication lithium battery product model: XL 14.4V 7000mAh
Technical parameters of 14.4V communication lithium battery (specific design according to customer requirements - voltage/capacity/size/line)
Single battery model: 18650
·Single battery voltage: 3.6V
·Nominal voltage after battery pack combination: 14.4V
·Single battery capacity: 3.5Ah
·Battery combination method: 4 series and 2 parallel
·Battery voltage range after combination: 10.0v-16.8v
·Combined battery capacity: 7.0ah
·Battery pack power: 100.8Wh
·Battery pack size: 19 * 71 * 149mm
·Maximum discharge current:<7A
·Instantaneous discharge current: 14A-21A
·Maximum charging current: 0.2-0.5c
·Charging and discharging frequency: ＞ 500 times
·Main chips: (Seiko, TI)
14.4V communication lithium battery
·Comply with relevant national battery standards and requirements
·All battery products are calibrated and tested before leaving the factory. Can be used directly and normally
