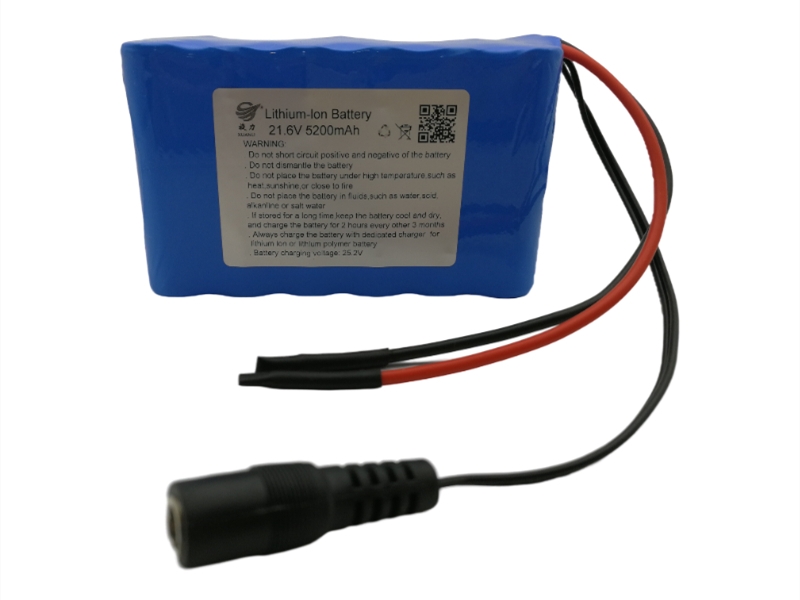

21.6V Cylindrical Lithium Battery Product Model: XL 21.6V 5200mAh
Technical parameters of 21.6V cylindrical lithium battery (specific design according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
·Single battery voltage: 3.6V
·Nominal voltage after the battery pack is assembled: 21.6V
·Single battery capacity: 2.6Ah
·Battery combination mode: 6 strings and 2 parallels
·Battery voltage range after combination: 15v-25.2v
·Battery capacity after combination: 5.2ah
· Battery pack power: 112.32Wh
·Battery pack size: 40*112*68mm
·Maximum discharge current: <5.2A
·Instantaneous discharge current: 10.4A-15.6A
·Maximum charging current: 0.2-0.5c
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)
21.6V cylindrical lithium battery
·Comply with relevant national battery standards and requirements
·All finished batteries are calibrated and tested before they leave the factory. Can be used directly
