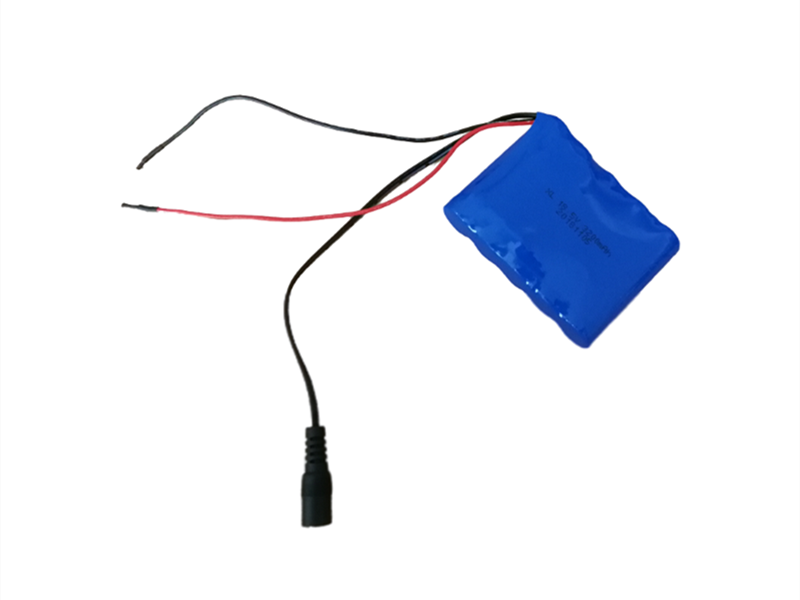

18.5V cylindrical lithium battery Product model: XL 18.5V 3200mAh
Technical parameters of 18.5V cylindrical lithium battery (specific design according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
·Single battery voltage: 3.7V
·Nominal voltage after the battery pack is assembled: 18.5V
·Single battery capacity: 3.2Ah
·Battery combination: 5 strings and 1 parallel
·Battery voltage range after combination: 12.5v-21v
·Battery capacity after combination: 3.2ah
·Battery pack power: 59.2V
·Battery pack size: 19*93*68mm
·Maximum discharge current: <3.2A
·Instantaneous discharge current: 6.4A-9.6A
·Maximum charging current: 0.2-0.5c
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)
18.5V cylindrical lithium battery
·Comply with relevant national battery standards and requirements
·All finished batteries are calibrated and tested before they leave the factory. Can be used directly
