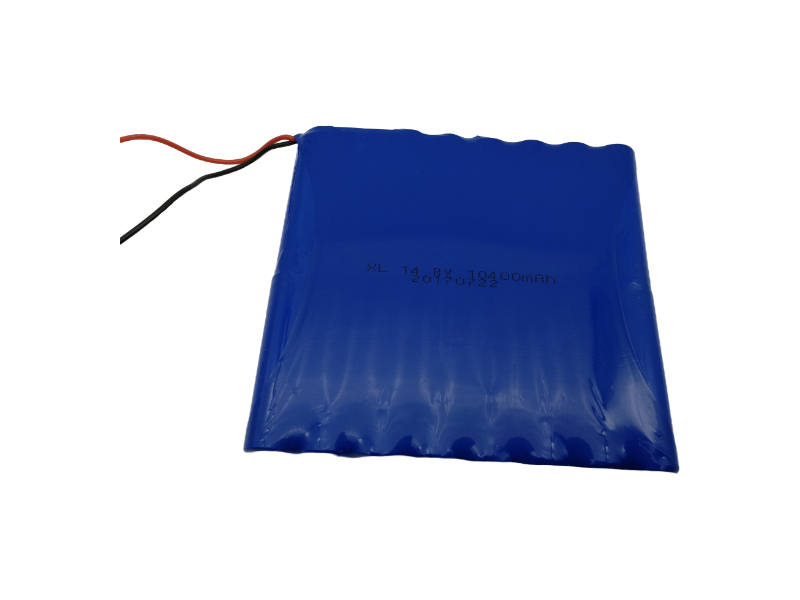

14.8V cylindrical lithium battery Product model: XL 14.8V 10400mAh
Technical parameters of 14.8V cylindrical lithium battery (specific design according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
·Single battery voltage: 3.7V
·Nominal voltage after the battery pack is assembled: 14.8V
·Single battery capacity: 2.6Ah
·Battery combination mode: 4 strings and 4 parallels
·Battery voltage range after combination: 10V-16.8V
·Battery capacity after combination: 10.4ah
· Battery pack power: 153.92Wh
·Battery pack size: 20*138*150mm
·Maximum discharge current: <10.4A
·Instantaneous discharge current: 20.8A-31.2A
·Maximum charging current: 0.2-0.5c
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)
14.8V cylindrical lithium battery
·Comply with relevant national battery standards and requirements
·All finished batteries are calibrated and tested before they leave the factory. Can be used directly
