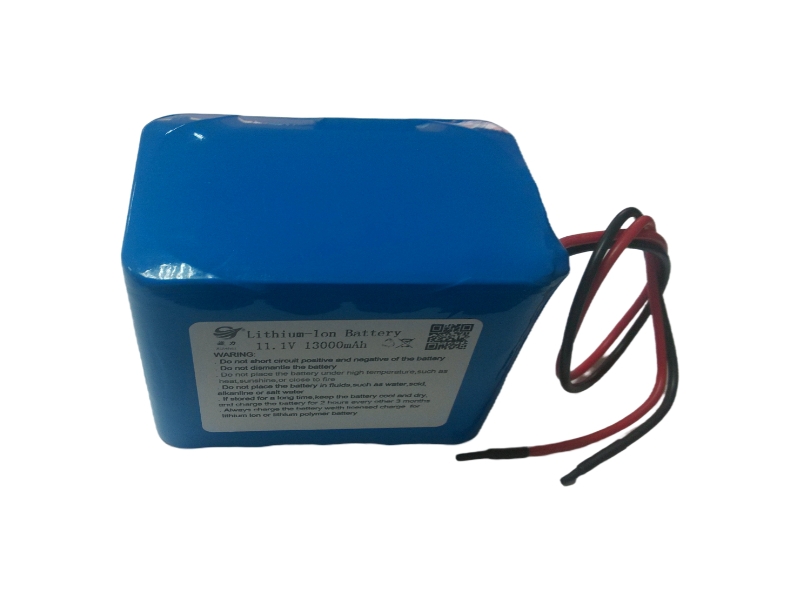

11.1V Cylindrical Lithium Battery Product Model: XL 11.1V 13000mAh
11.1V cylindrical lithium battery technical parameters (specific design according to customer requirements-voltage/capacity/size/line)
·Single battery model: 18650
·Single battery voltage: 3.7V
·Nominal voltage after the battery pack is assembled: 11.1V
·Single battery capacity: 2.6Ah
·Battery combination mode: 3 strings and 5 parallels
·Battery voltage range after combination: 7.5V-12.6V
·Battery capacity after combination: 13ah
·Battery pack power: 144.3Wh
·Battery pack size: 56*92.5*67mm
·Maximum discharge current: <13A
·Instantaneous discharge current: 26A-39A
·Maximum charging current: 0.2-0.5c
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)
11.1V cylindrical lithium battery
·Comply with relevant national battery standards and requirements
·All finished batteries have been calibrated and tested before they leave the factory and can be used directly.
